High Voltage Resistor HVG

High Voltage Resistors

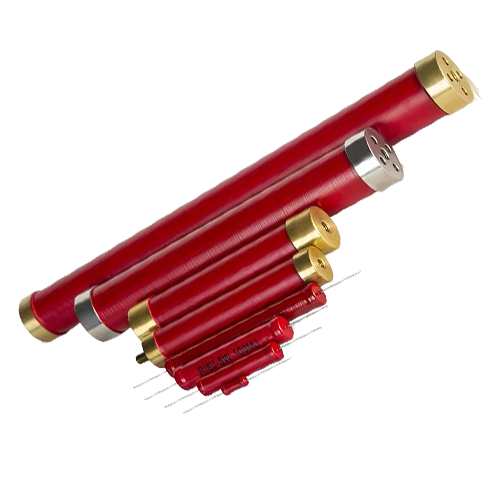

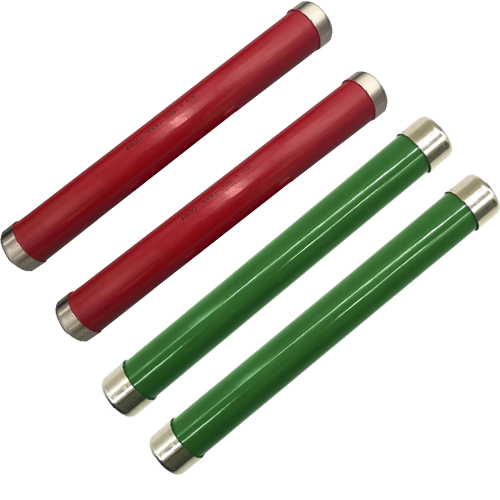

Cylindrical high-voltage resistors: Robust and versatile

Description

Datasheet — HVG.pdf

High-voltage resistors ensure that voltages are regulated. They enable precise measurement and thus increase safety in the vicinity of electrical systems. Each design and each voltage range offers specific advantages and can be optimally tailored to different applications

Cylindrical high-voltage resistors are among the most commonly used designs. Their construction allows for a compact design with high voltage and power resistance. Thanks to their robust structure, they are ideal for applications where reliability and long service life are crucial

Advantages:

Compact cylindrical shape that can be easily integrated into existing systems
High resistance to stress and temperature
Reliable performance even under demanding conditions
Wide range of different coating options available

Application:

Test equipment and measurement systems
Power supply and energy technology
Industrial electronics and automation
Medical technology

Technical specifications

Housing	Cylindrical
Application	High voltage regulation and measurement

Key features

Robust and versatile
High resistance to stress and temperature

Customization

Power rating, resistance value, dimensions and lead configuration can be adjusted to your drawing.

Custom resistance values and tolerance
Custom power ratings and package dimensions
Lead length and configuration options
Drawing review before production
